CPM2004
Product Description:
Engineered for maximum productivity, the CP2004 is powered by a robust YTO 6-cylinder diesel engine rated at 147kW (200HP). It features a versatile 16F+8R shuttle shift transmission and an optional creeper gear for ultra-low speed operations. With a substantial structural weight of 5,800kg and a high ground clearance of 450mm, it offers exceptional stability and traction in tough field conditions. The semi-independent PTO (760/850 rpm) and standard 3-point linkage ensure compatibility with heavy-duty implements such as large square balers, deep plows, and wide-width mowers.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Model | CP2004 | ||||
Dimensions of Tractor(mm) | Length | 5280 | |||
Width | 2340 | ||||
Height (to the exhaust vent) | 3100 | ||||
Tread | Front Wheel | 1970 | |||
Rear Wheel | 1700-2300 (usual 1800) | ||||
Axle Base | 2700 | ||||
Min.Ground Clearance | 450 | ||||
Structure weight (kg) | 5800Kg | ||||

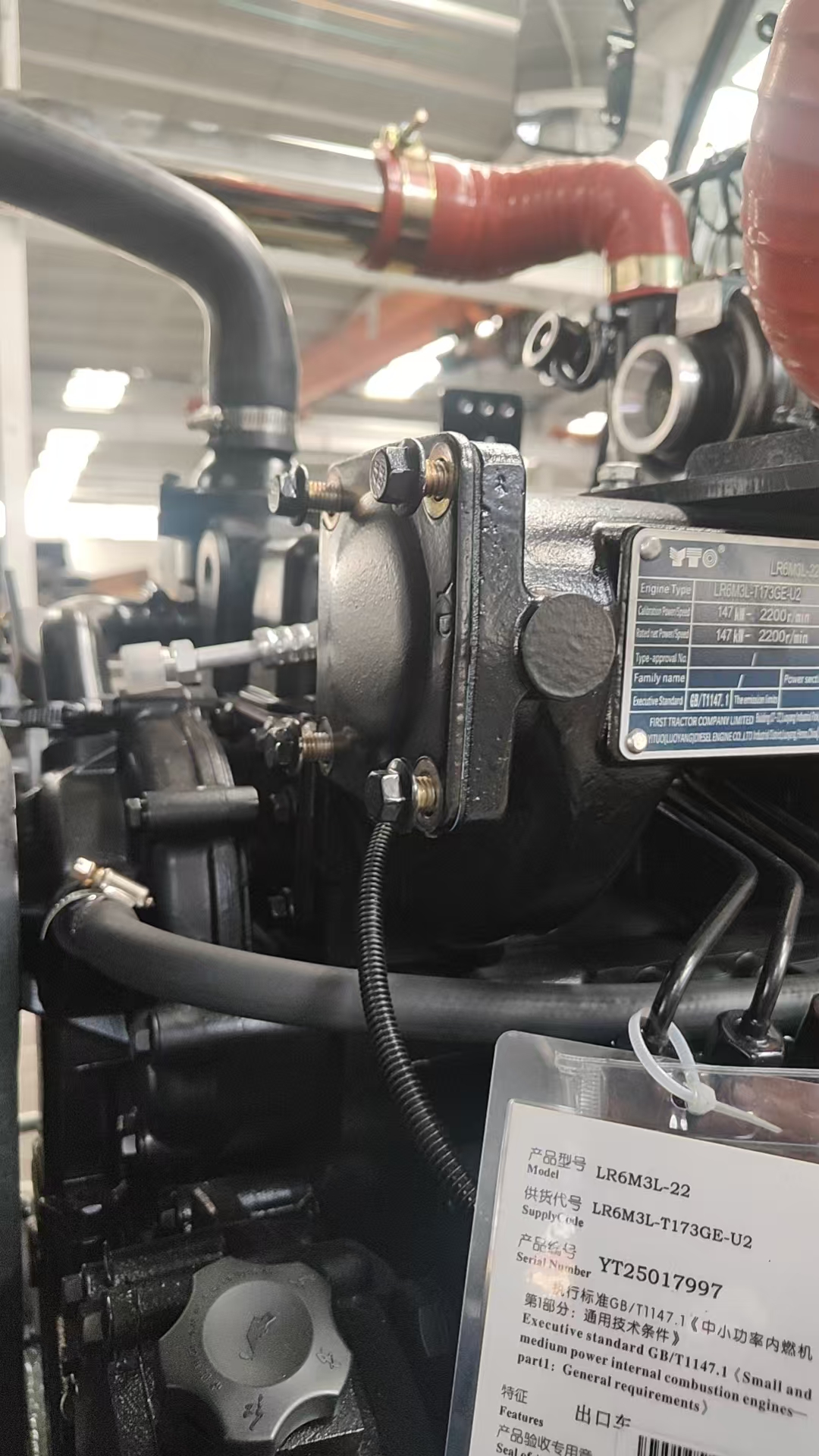

Engine | Model | YTO | |||
Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | ||||
Rated Power(kw) | 200hp | ||||
Rated speed (r/min) | 2200 | ||||
Fuel | Diesel | ||||

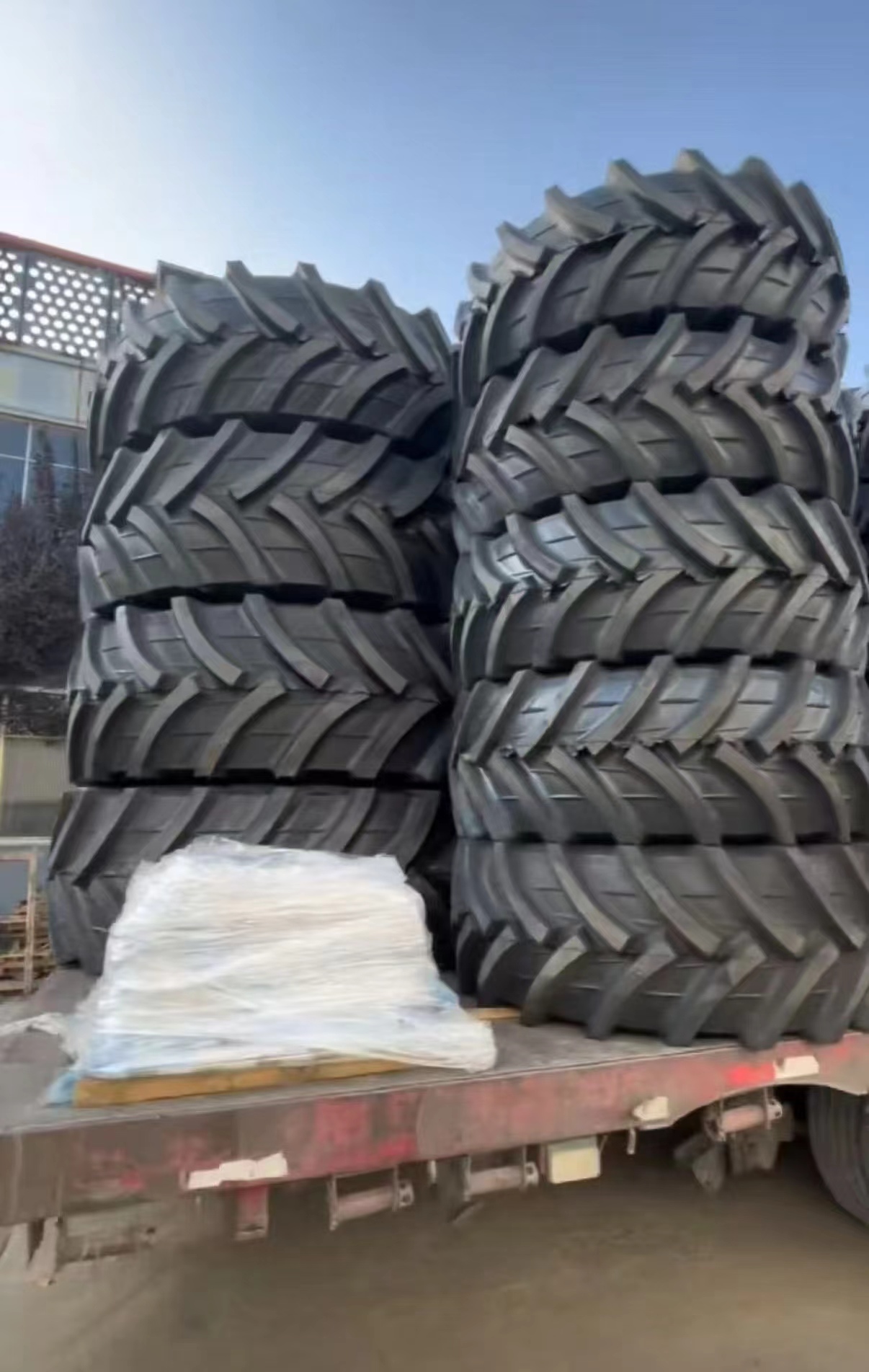

Tires | Front Wheel | 14.9-28/(optional 14.9-24) | |||
Rear Wheel | 18.4-38/(optional 18.4-34) | ||||
Clutch | Dry,Dual-stage clutch | ||||
Steering | Hydraulic steering | ||||
Transmission Type | 16F+8R Shuttle shift/ Creeper gear shift | ||||
Suspension Type | 3-point links | ||||
PTO | Type and Rev | Semi-independent Type 760/850r/m | |||
Spline Size | F38 Rectangle Spline with 6 teeth | ||||
