CPM2204
Product Description:

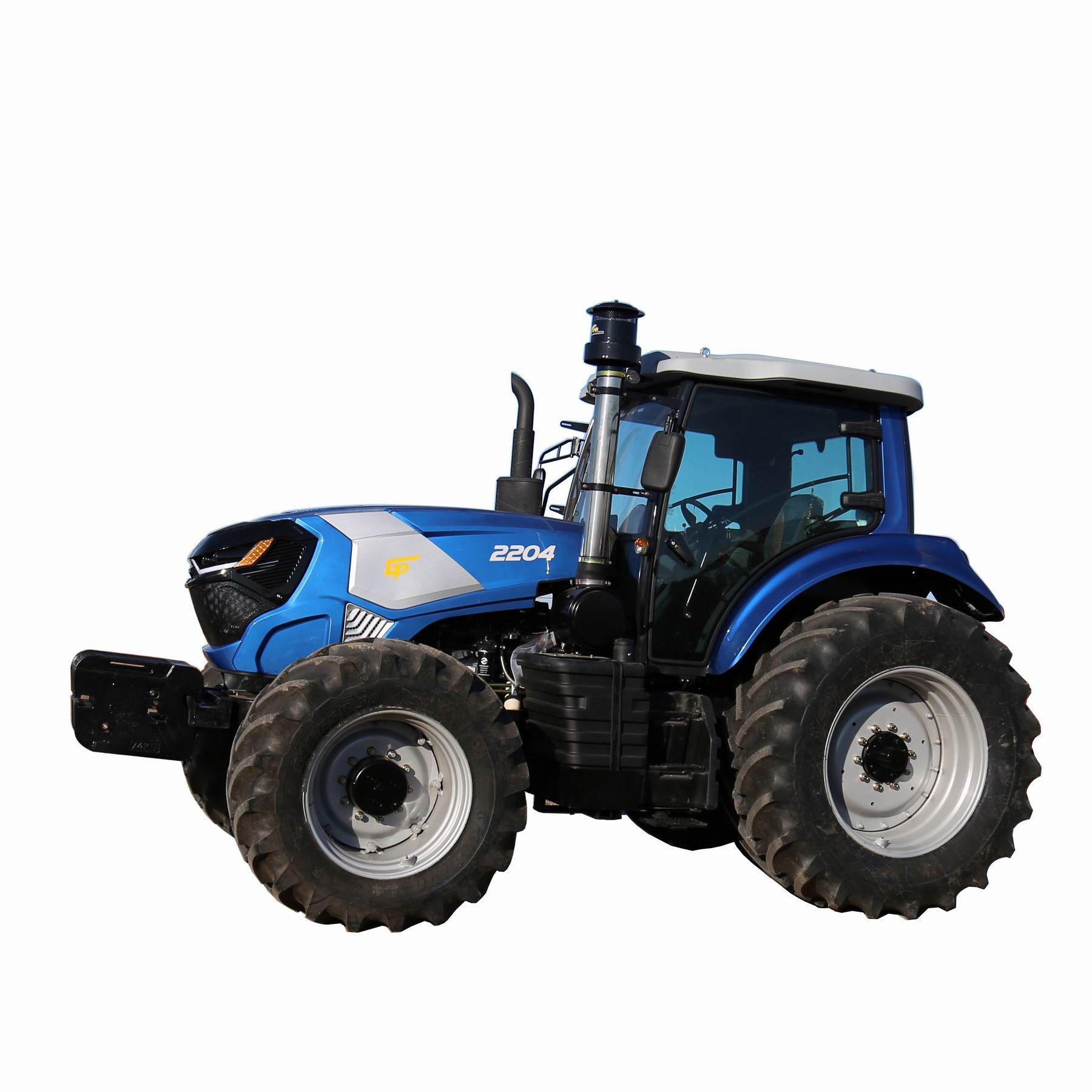

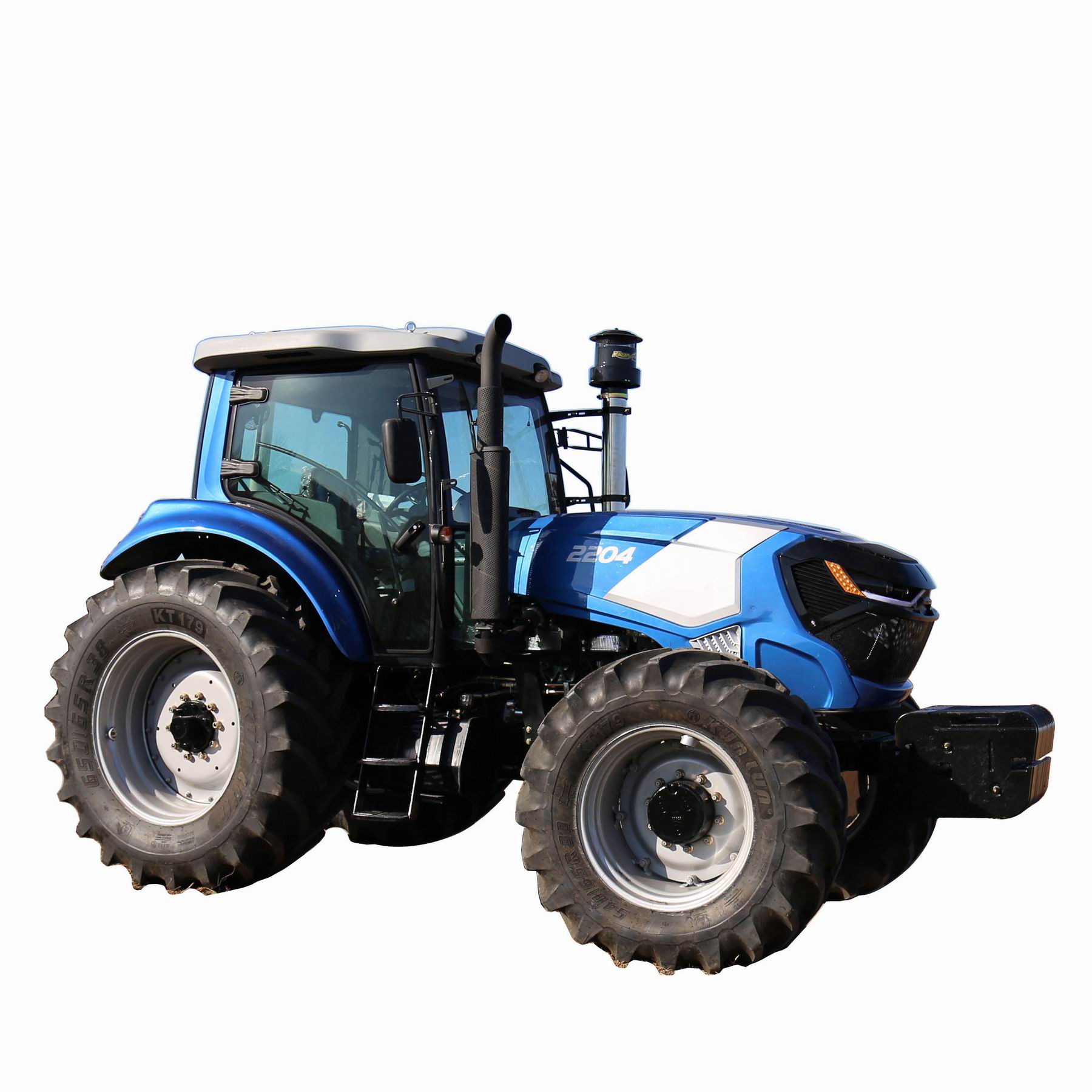

The CP2204S is a premium heavy-duty tractor engineered for large-scale agricultural operations. Powered by a reliable Weichai 6-cylinder diesel engine delivering 162kW (220HP), it features a sophisticated 16F+16R synchronized shuttle shift transmission with an optional creeper gear for precise speed control. Its massive structural weight of 7,800kg ensures outstanding traction and stability. Equipped with a durable wet dual-stage clutch and a high-torque semi-independent PTO (760/850 rpm), this machine is built to handle the most demanding implements, from large balers to wide-span rotary cutters.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Model | CP2204S | ||||
Dimensions of Tractor(mm) | Length | 5500 | |||
Width | 2500 | ||||
Height (to the exhaust vent) | 3100 | ||||
Tread | Front Wheel | 1820 | |||
Rear Wheel | 1700-2380 (usual 1800) | ||||
Axle Base | 2800 | ||||
Min.Ground Clearance | 450 | ||||
Structure weight (kg) | 7800Kg | ||||
Engine | Model | Weichai | |||
Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | ||||
Rated Power(kw) | 220hp | ||||
Rated speed (r/min) | 2200 | ||||
Fuel | Diesel | ||||
Tires | Front Wheel | 16.9-28(18.4-26) | |||
Rear Wheel | 18.4-42(20.8-38) | ||||
Clutch | Wet,Dual-stage clutch | ||||
Steering | Hydraulic steering | ||||
Transmission Type | 16F+16R synchro meshed Shuttle shift/ Creeper gear shift | ||||
Suspension Type | 3-point links | ||||
PTO | Type and Rev | Semi-independent Type 760/850r/m | |||
Spline Size | F38 Rectangle Spline with 6 teeth | ||||
