CPM704
Product Description:

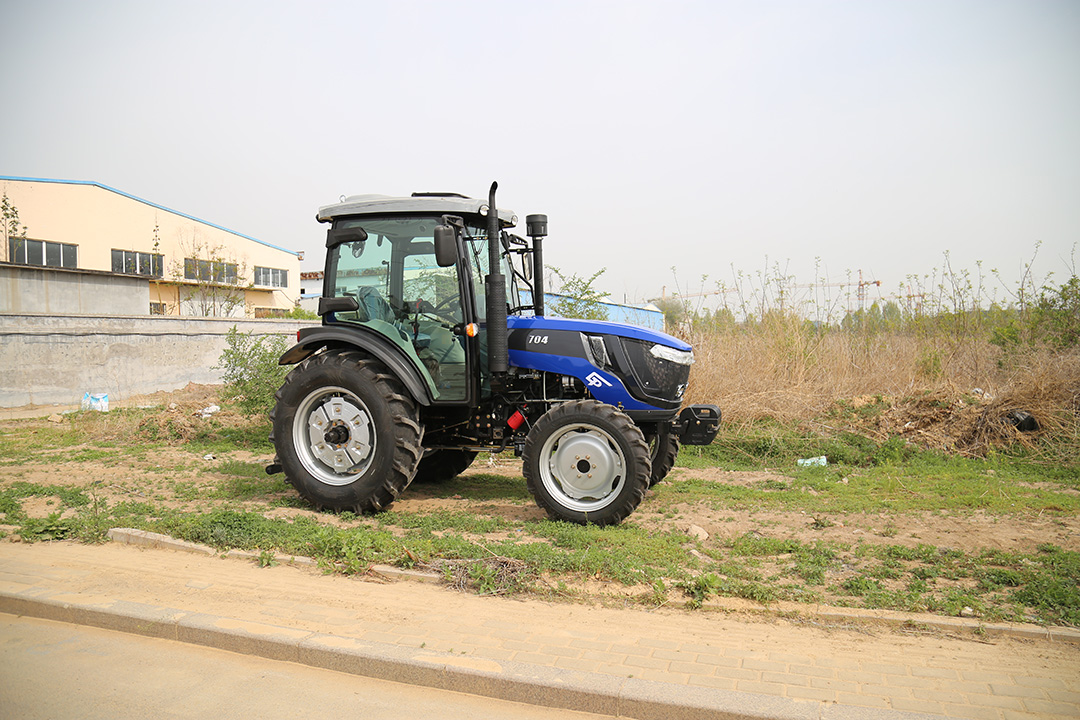

CP704 is a 70HP 4WD medium tractor fitted with a fully enclosed air-conditioned cab. Equipped with high-efficiency water-cooled diesel engine, it achieves stable power output and excellent fuel economy. Four-wheel drive brings reliable traction for rotary tillage, ploughing, seeding and transportation. Compact body with flexible steering adapts to orchards, farmlands and hilly plots. It supports a wide range of matched farm implements to meet diversified daily farming demands.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Main Technical Parameters
Model | CP704 | ||
(mm)Dimensions of Tractor | Length (to front ballast) | 4050mm | |
Width | 1640mm | ||
Height (to the exhaust vent) | 2680mm | ||
Tread | Front Wheel | 1408mm | |
Rear Wheel | 1408mm | ||
Axle Base | 2100mm | ||
Min.Ground Clearance | 3510mm | ||
Structure weight (kg) | 3000 | ||
Ballast weight (kg) | Front ballast | 144 | |
Rear ballast | 360 | ||
Rated traction force (kN) | 16.5 | ||
Engine | Model | LAIDONG | |||
Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | ||||
Rated Power | 70HP（51.5Kw） | ||||
Rated speed (r/min) | 2400 | ||||
Fuel | Diesel | ||||
Tyre | Front Wheel | 6.5-20(2WD)8.3-24(4WD) | |||
Rear Wheel | 14.9-30 | ||||
Clutch | Dry, Dual-stage clutch | ||||
Steering | power steering | ||||
Transmission Type | 12F+12R | ||||
Suspension Type | 3-point links | ||||
PTO | Type and Rev | Semi-independent Type:540/760 or 540/1000 or 760/1000 (optional) | |||
Spline Size | F35 Rectangle Spline with 6 teeth | ||||
