CPM504
Product Description:

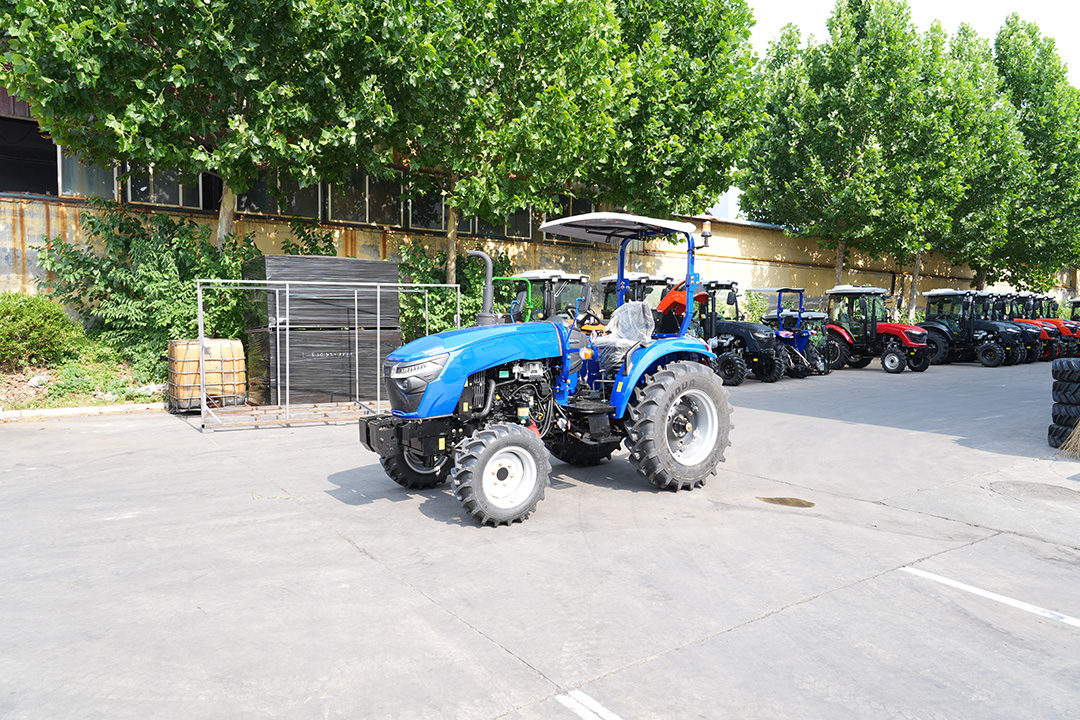

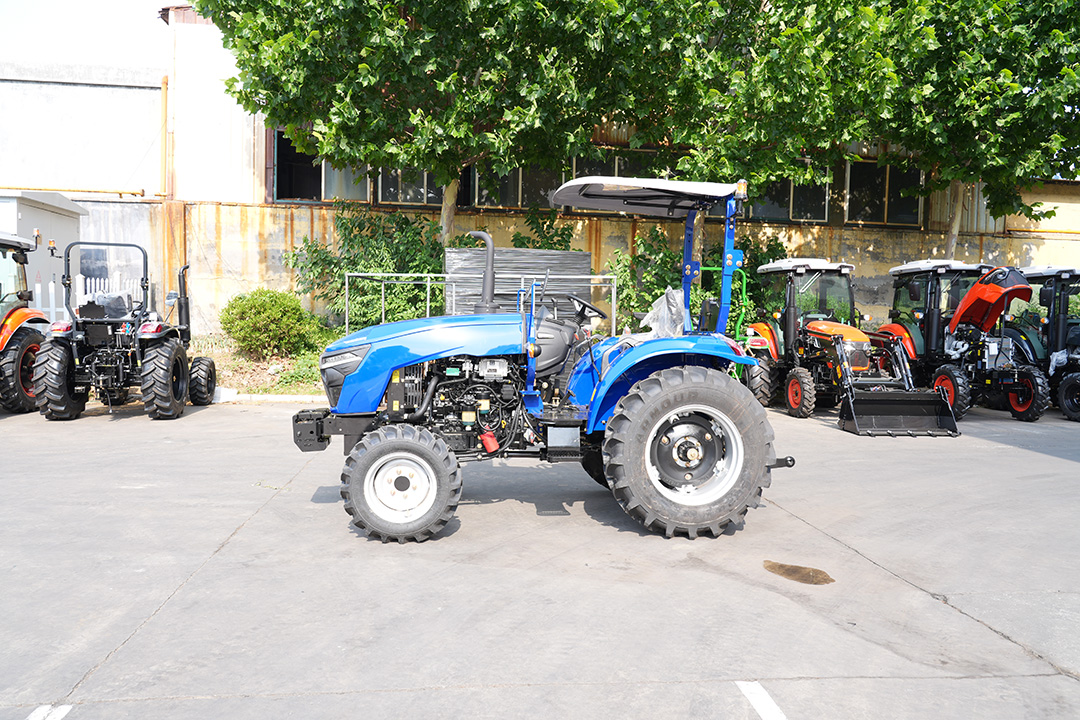

This 50HP 4WD medium tractor comes with practical sunshade canopy. Powered by reliable water-cooled diesel engine, it delivers stable power output with low operation cost. Compact body and small turning radius allow flexible work in orchards, greenhouses and scattered farmland. The four-wheel drive system offers good traction for rotary tillage, ploughing, seeding and transportation. It can match various farm implements, an economical choice for individual farmers and small agricultural operations.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Main Technical Parameters

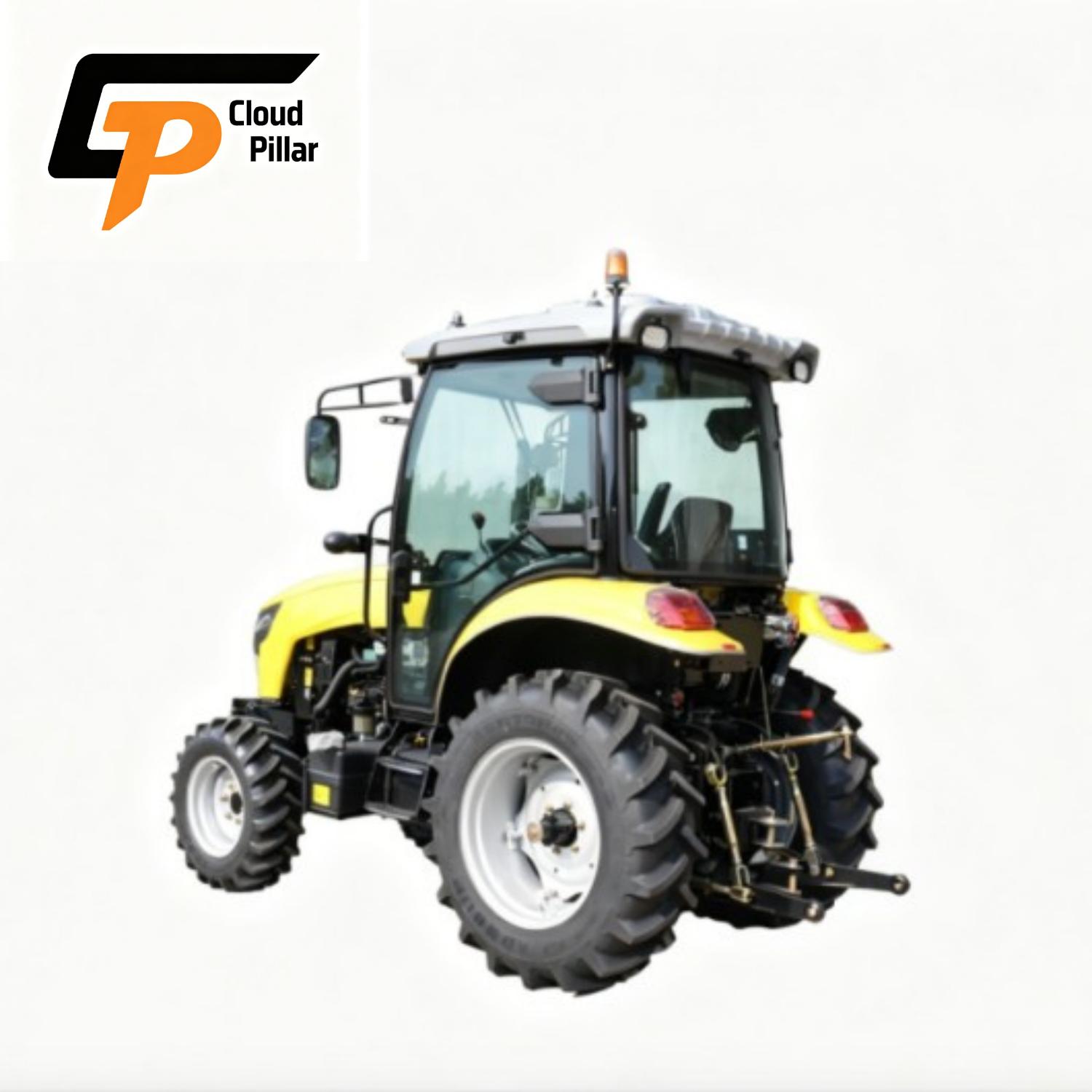

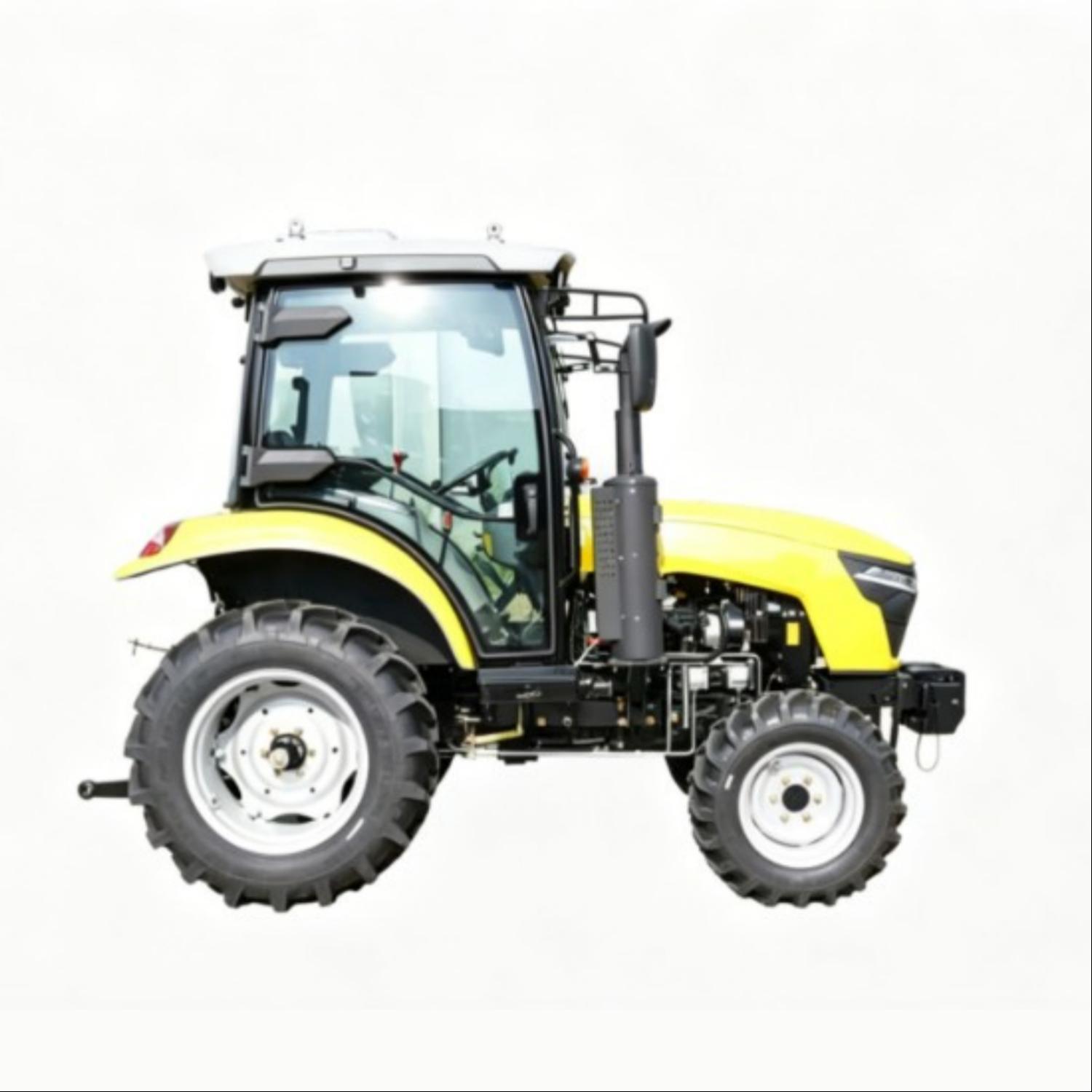

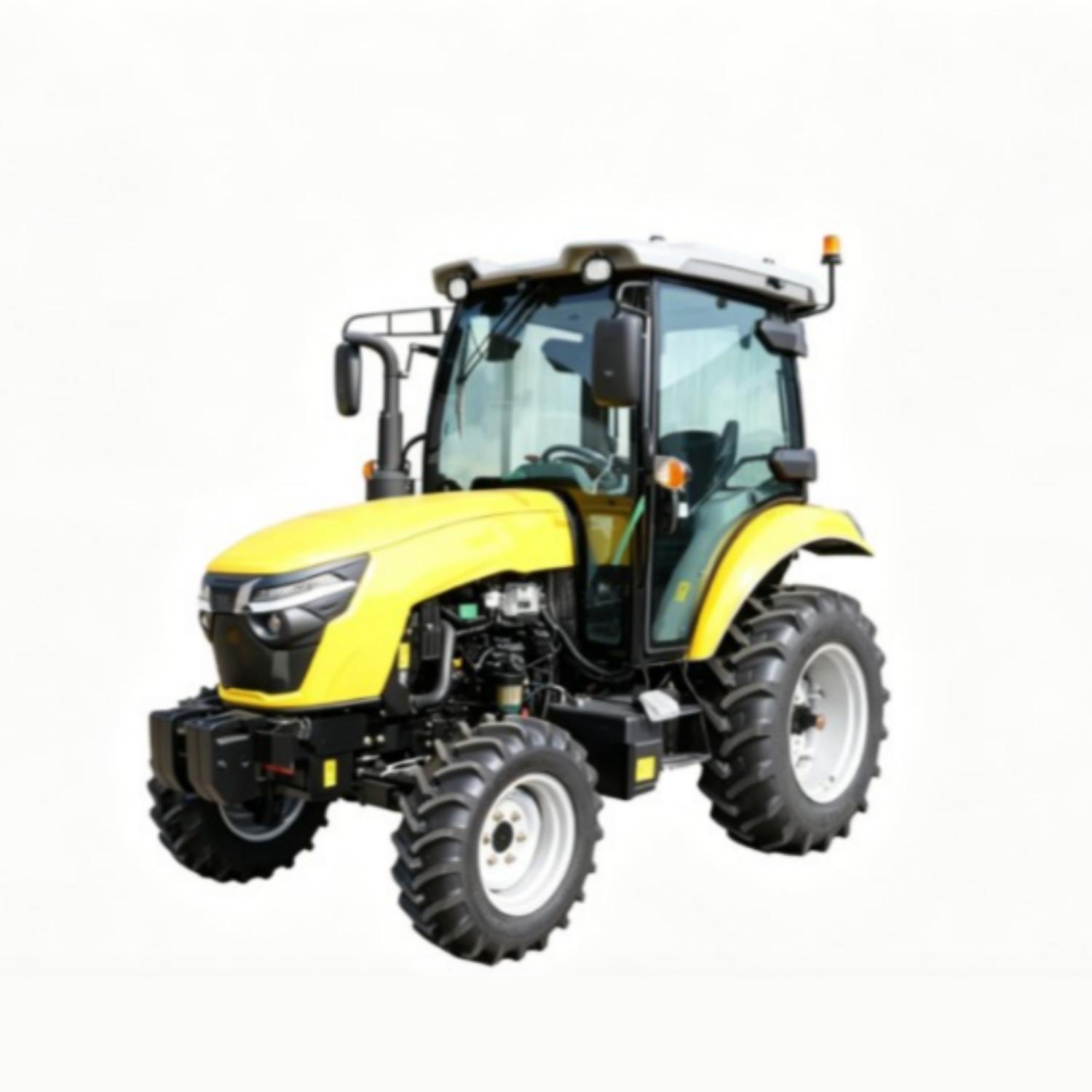

| Item | 50HP no cabin | 50HP with cabin |
| Horsepower | 50HP | 50HP |
| Overall Dimension (mm) (L*W*H) | 3220*1650*2775 | 3500*1605*2540 |
| Wheel Tread (mm) | Front: 1210 Rear: 1280 | Front: 1220 Rear: 1260 |
| Wheel Base (mm) | 1900 | 1900 |
| Min. Ground Clearance (mm) | Front: 376 Rear: 400 | Front: 380 Rear: 402 |
| Min. Service Weight (kgs) | 1725 | 1955 |

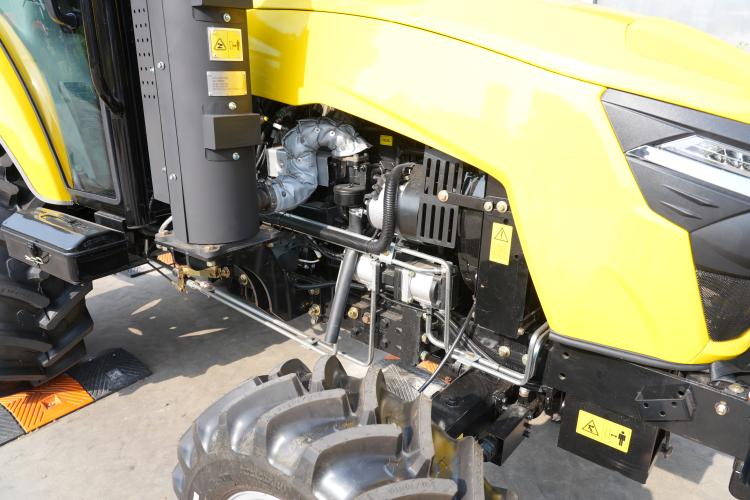

| Engine Data | ||
| Item | Parameter | |
| Diesel Engine | Laidong Euro V 4L28V50 | |
| Type | Four stroke, in-line, water-cooled | |
| Intake Method | Naturally aspirated | |
| Rated Power (kw/rpm) | 36.8/2400 | |
| Fuel Type | Diesel | |
| Max. Torque/rpm (Nm/r/min) | 183.2 Nm at 1800 r/min | |
| Transmission System | ||
| Item | Parameter | |
| Transmission Gear | 8F+8R | |
| Clutch | Double Action Clutch | |
| Hydraulic System/Working Part | ||
| Item | Parameter | |
| Steering Type | Hydraulic Steering | |

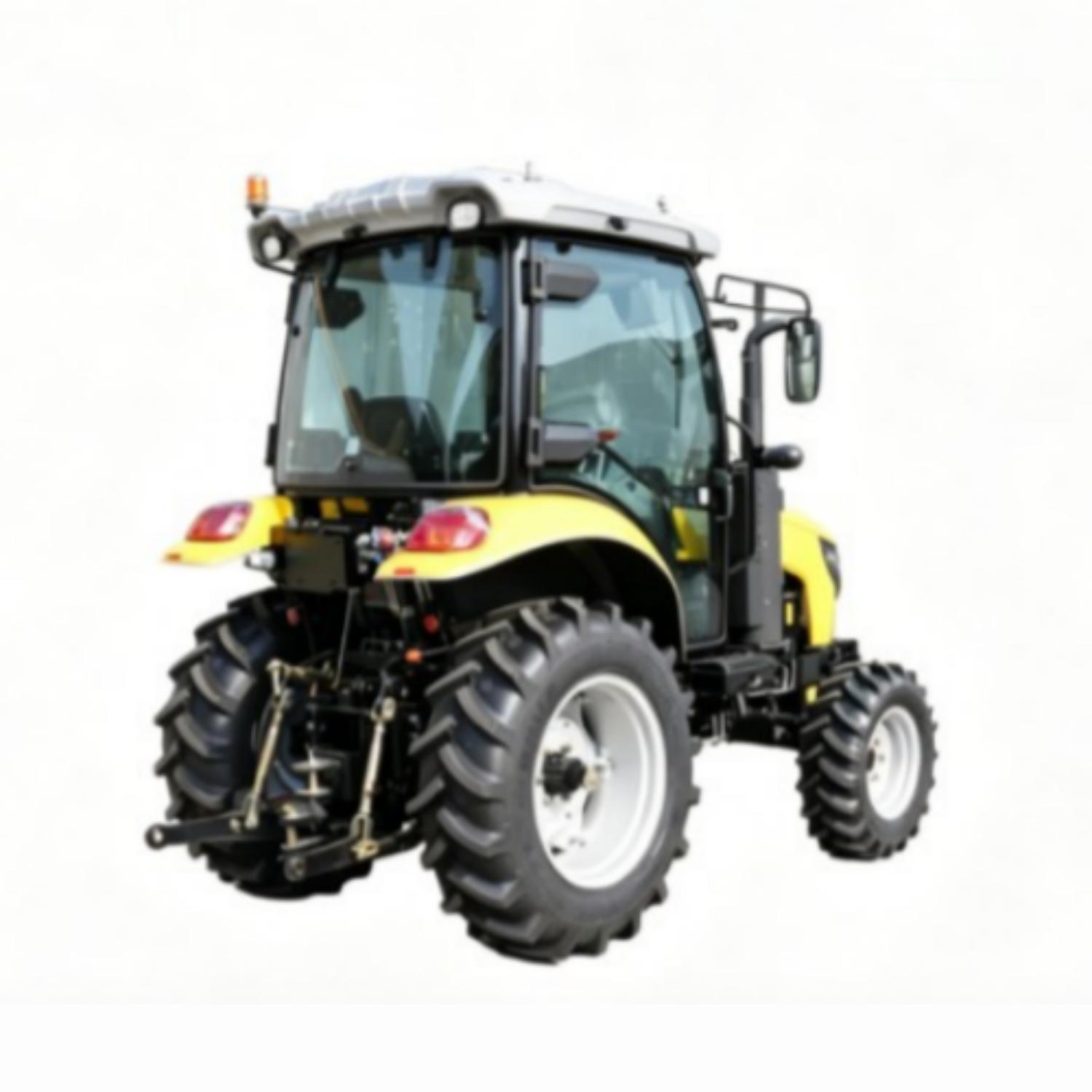

| Suspension Type | Three Point Linkage | |
| Hydraulic Output | Two Group Of Hydraulic Output Valves | |
| PTO Speed | 540/1000rpm | |
| PTO Spline Number | 6 | |
| Max. Traction Power (kN) | 10 | |
| Max. Lifting Force (kN) | 11.17 | |
| Travelling System | ||
| Item | 50HP no cabin | 50HP with cabin |
| Tire Size | 260/70R16, 320/85R24 | 280/70R16, 360/70R24 |
| Theoretical Speed (km/h) - Forward | 1.98-29.41 | 1.97-29.31 |
| Theoretical Speed (km/h) - Reverse | 1.85-27.18 | 1.84-27.08 |
