Product Description:

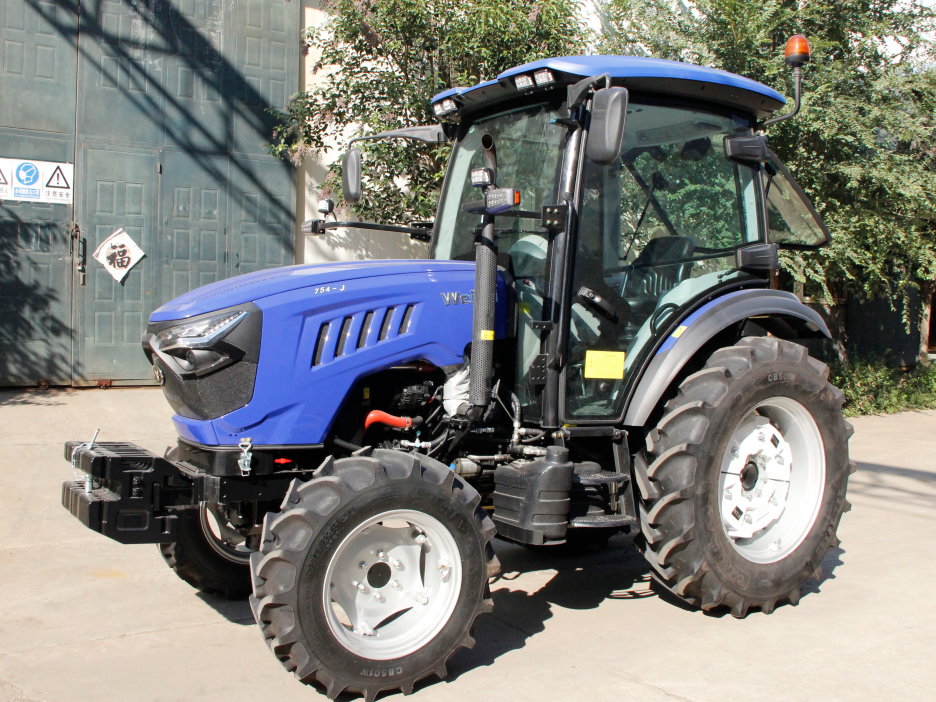

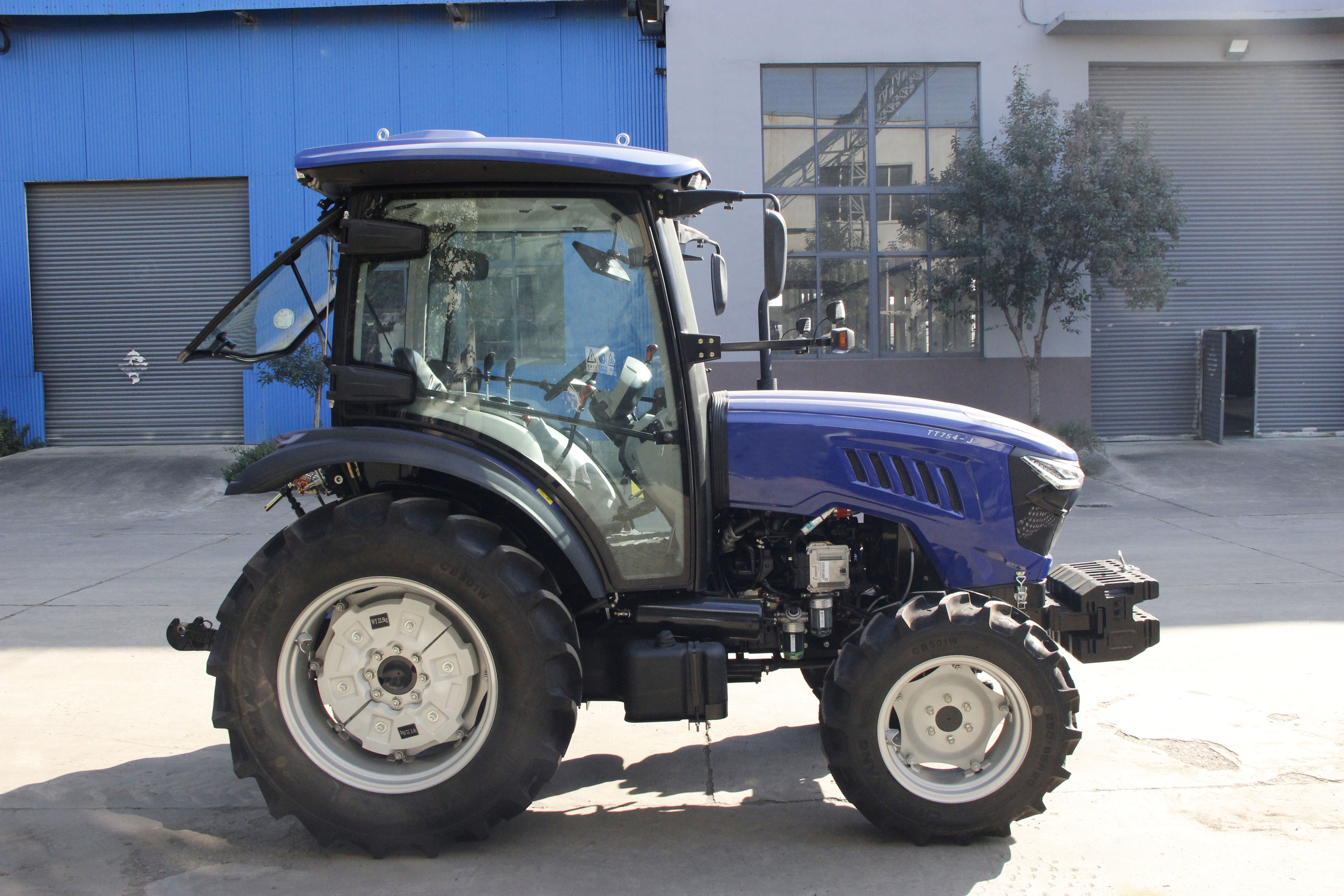

This robust 4WD tractor is engineered for high-efficiency farming, delivering a rated power of 55.8kW (75HP). It features a durable dry-type double-acting clutch and a versatile 12F+12R gearbox for optimal speed control across diverse tasks. The rear-mounted PTO offers dual speeds (540/1000 rpm) via a standard 6-spline shaft, ensuring compatibility with a wide range of European-standard implements. Equipped with a Category II three-point linkage and a 3-way hydraulic valve, it supports heavy-duty attachments such as large rotary mowers and loaders. The tractor rides on low-pressure radial tires (280/85R20 front, 380/85R30 rear) for reduced soil compaction and superior traction, while the inclusion of air brakes enhances safety during road transport.

Share:

Inquiry Now
  • Product Description
  • Inquiry Now
  • Related Products
  • Customer Reviews
Product Description

Dimensions tractor

of

Type

/

DRIVE TYPE (4×4)

Dimensions tractor

of

Power

kW

55.8

Dimensions tractor

of

Dimension

(L×W×H)

mm

415018002775

Dimensions

of

Weight

kg

2770



tractor




Power

Clutch

/

Dry-type, double-acting

Power

Engine

/

DEF20CLF4

Power

Gear

/

TB12F+12R

Working part

PTO Type

/

6 SPLINE, Φ35, I TYPE

Working part

PTO Speed

r/min

540/1000

Working part

Three point linkage

/

Rear, three-point suspension, cat 2

Hydraulic system

Hydraulic output

/

3-Way valve

Tyre

Tyre (Front/Rear)

/

280/85R20 380/85R30

Other

Configurations

Fuel tank capacity

L

62L

Other

Configurations

Air brake

/

With
