Scraper
Product Description:

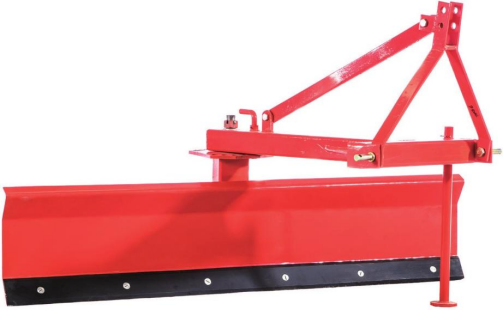

The TSRB series land scraper includes 7 models from TSRB-4 to TSRB-10. All units adopt standard 3-point hitch connection for direct mounting on tractors.
Their working width spans 1200mm to 3000mm, with total weight increasing gradually from 150kg to 270kg to guarantee structural rigidity during earth moving. Required matched tractor horsepower rises accordingly: the smallest TSRB-4 works with 20–30HP tractors, while the maximum TSRB-10 suits 80–100HP tractors.
Ideal for farm land leveling, road maintenance, soil spreading and ditch trimming, this full model range can accommodate small yards, farm plots and large farmland grading tasks with proper tractor matching.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Model | Unit | TSRB-4 | TSRB-5 | TSRB-6 | TSRB-7 | TSRB-8 | TSRB-9 | TSRB-10 |
Working width | mm | 1200 | 1500 | 1800 | 2100 | 2400 | 2700 | 3000 |
Total weight | kg | 150 | 170 | 190 | 210 | 230 | 250 | 270 |
Linkage | 3-point mounted | |||||||
Matched power | hp | 20-30 | 25-35 | 30-40 | 40-50 | 50-60 | 60-80 | 80-100 |
